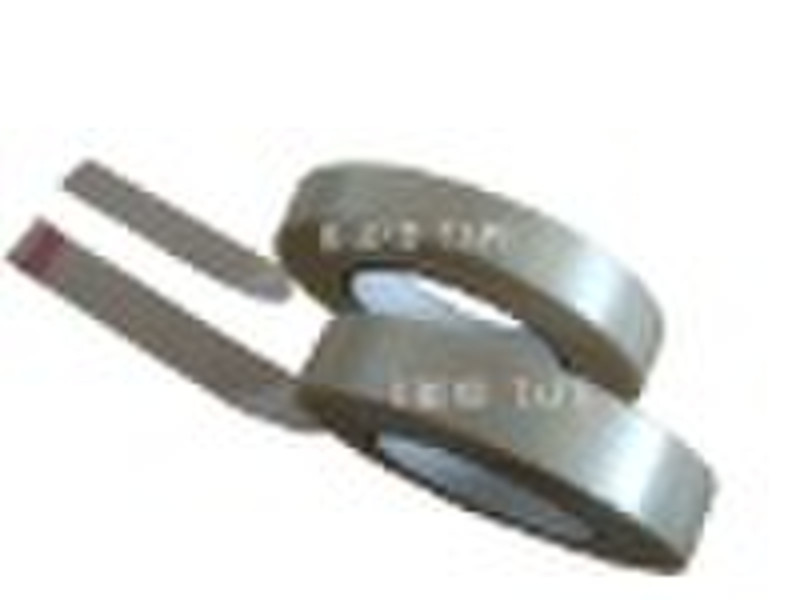

OIL FILLED TRANSFOMER FILAMENT TAPE
Queenie Zong
Contact person
Basic Information
OIL FILLED TRANSFOMER FILAMENT TAPEZH-BXOA016 is a 5.5 mil polyester film/glass filament tape coated with an acrylic, pressure-sensitive adhesive.• ROHS Recognized, Class F (155°C)• Solvent resistant without thermosetting• High breaking strength, ZH-BXOA016 is especially suited for heavy duty air and oil filled transfer applications, reinforcements, holding and separating ground insulation, bundling motor coils and coil covering. Product Description (Test Method ASTM D1000)Typical PropertiesTypical ValuesAdhesiveAcylicBackingpolyester film/Glass FilamentBacking Thickness0.14mm (5.5mils)Total Thickness0.165mm(6.5mils)ColorClearTemperature Class155°CDielectric Breakdown5000VBreaking Strength800 1000N/25mm(500N/10mm)Elongation % at break0.04Adhesion to Steel12N/25mm (5N/10mm)Resistant to solvent ,oilexcellentRoHSpassULwill passlength50mWidth2 980mmSolvent-resistant, high tensile strength; for use in heavy-duty bundling, holding, reinforcing application, and air and oil-filled transformer transfer.1 hours 150°C 300°F 2 hours 135°C 275°F 3 hours 120°C 250°F
Delivery terms and packaging
Packaging Detail: export packing requirement Delivery Detail: within 5 worddays
Port: shanghai
Payment term
Documents Against Payment
Letter of credit
Telegraphic transfer
Western Union
-
Payment Methods
We accept:
